ALC roof panel

ALC roof panels are made into single or porous cavities inside the roof panels, and insulation materials are lined inside the cavities or non connected cavities inside the panels are used to improve the cold insulation performance of the roof panels. So ALC roofs do not require additional insulation materials and can achieve insulation and energy-saving effects, and their convenient construction can greatly shorten the construction period. After the roof panels are installed on the sloping beams of the mountain wall on the top floor of the house, the wing panels are overlapped and covered to prevent vertical seams from appearing on multiple individual roof panels, forming a well integrated sloping roof< br /> ALC roof panels can be directly mounted on steel roof trusses or steel beams. Installing roof panels on reinforced concrete structures can be achieved by welding steel bars onto pre embedded iron; When the roof slope is 1:2, supporting iron pieces must be welded between the three plates and rust proof treatment must be carried out
Description Specifications

主要用于钢结构楼面,钢结构平台,房屋屋面等部位,通常采用BO5、A3.5级别的板材,具体规格如下表

强度等级 密度级别 绝干密度kg/m3 导热系数W/(m.k) 立方体抗压强度(MPa)
平均值不小于 单组值最小值不小于
A2.0 B04 ≤425 ≤0.12 2.0 1.6
A2.5 B05 ≤525 ≤0.14 2.5 2.0
A3.5 B05 3.5 2.8
B06 ≤625 ≤0.16 3.5 2.8
A5.0 B06 5.0 4.0

种类 容许荷载 (N/m2) 板材厚度(mm)
75 100 125 150 175 200
板材最大长度(mm)
屋面板 800 2000 3000 3500 4200 4800 5200
1000 2000 3000 3500 4200 4800 5200
1200 1960 2920 3400 4080 4640 5200
1400 1920 2840 3300 3960 4480 5200
1600 1880 2760 3200 3840 4320 4950
1800 1840 2680 3100 3720 4160 4900

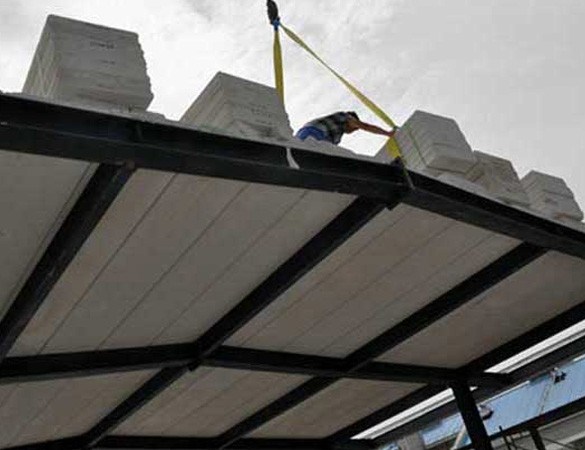

屋面板安装示意图
ALC屋面板ALC屋面板ALC屋面板
